6mm Fly RC F4D Skyray Review
High speed: no problem, low speed: ditto. Albert Wahrhaftig introduces us to this classic jet turned park jet.
Introduction
It looks real for sure! |
|
| Wingspan: | 28" |
| Weight: | 17-19 oz. (19 oz. as tested) |
| Length: | 37" |
| Servos: | 2 Spectrum S75 |
| Transmitter: | Spectrum DX6 |
| Receiver: | Spectrum AR6000 |
| Battery: | 3x2100 LiPo |
| Motor: | Little Screamers Super Park Jet |
| ESC: | Castle Creations 25 amp |
| Propellor: | APC 7x5 |
| Price: | $60 (+ $5 for EDF version) |
| Manufacturer: | 6mm FlyRC |
| Available From: | 6mm FlyRC |
Yes, I am susceptible to love at first sight. That's what happened when good friend and ace RCGroups reviewer Jon Barnes showed up at our flying field with his 6mm FlyRC Douglas F4D Skyray. It looked like a great grey lawn dart with a nice cockpit and pilot hard at work within, but did it ever fly! I decided on the instant that I had to possess one.
The Skyray was an interesting little airplane. The result of The US Navy's investigation of German delta-wing research, Douglas's designer, Edward Heinemann created a carrier-based interceptor with a fantastic rate of climb, intended to protect the US fleet from attack by bombers. In 1953, a prototype set a new world speed record at 752.9 MPH. Only 419 Skyrays were built. Their service life extended from 1956 to 1962.
6mm FlyRC, producers of an armada of Depron military jet fighters, describes their Skyray quite accurately as "fast as lightning and rock solid at slower speeds." The Skyray reviewed here is powered by an outrunner and pusher prop mounted in the tail. An EDF powered version is available for an additional $5.
This is not an ARF kit. There is nothing tricky about assembling it, but a great deal of careful adjusting and fitting by a patient builder is required. The full instruction manual is downloadable at 6mm Fly RC. Consult it to determine whether this is a project for you.
Kit Contents
The Skyray comes in an unadorned flat cardboard box. As almost all the parts are either 6mm Depron foam or pink foam, there is no need for fancy packing. Everything arrived undamaged.
Contents
- Lasercut 6mm. Deprom wing, fuselage, elevon, and fin parts
- Thicker pink foam parts to laminate for nose cone and air intakes
- Transparent plastic cockpit/hatch cover
- Molded plastic pilot
- Carbon fiber rod for spar
- Wood stick mount for motor
- Pushrods and control horns
- Instructions on a CD
Needed to complete the Skyray:
- If you have the skill to build this plane and the experience to fly it, you probably have all the necessary tools in your workshop. They are all common and ordinary.
- You will need a motor, ESC, prop, receiver, and two micro servos. The ones I used are specified in the box at the head of this review. Anything similar will work. For further information, download the instructions.
- Depending on where you choose to locate your equipment, you may need servo cable extensions (I didn't) and/or an extended cable between the battery and the ESC (I did).
-
The Skyray arrives in a plain but sturdy box.
-
-
Lots of parts, as you can see.
-
This pilot is included.
Assembly
The CD that comes with the kit contains excellent photo-illustrated step by step instructions for assembling the Skyray. In addition, there are suggestions for painting and finishing, a sheet on assembling the canopy, and instructions for several of 6mm's other models.
Most of the flat Depron parts are supplied oversize in order to allow for trimming them for a correct fit. Once laminated, the pink foam parts of the nose and air intakes must be carved to shape, so be prepared to do a lot of cutting, fitting, trimming and sanding as your put your Skyray together. There is nothing difficult about this, but please understand that we are not talking about an "insert tab A in slot B" ARF. I found a Great Planes Power Plane very handy for the initial rough cuts. Just adjust if for a shallow cut and take it slow and you will save a lot of time with it.
The photos and captions that follow illustrate the major assembly steps. For more detail refer to the downloadable instructions.
For starters, the wings, aft fuselage core, and carbon fiber spar are assembled on a flat surface. Since this airplane is basically all wing (and you sure don't want warps in it) you want to make sure that the surface is absolutely flat. In addition to heavy books to weight down the parts while the epoxy sets, I find that zip lock sandwich bags filled with sand make convenient weights to place on smaller and less flat areas.
-
Two wing panels are attached to the core of the aft fuselage. Notice the slot for a motor mounting stick, if you are going to use that kind of mount.
-
At several stages, you will need large heavy books to weight parts down while the epoxy sets.
-
Gluing the vertical fin and spine of the aft fuselage, using lead weights and sand filled sandwich bags.
The carving and sanding starts with fitting the top sheets to the aft fuselage. Maybe someone can figure out all the angles and form them by putting the Depron sheet through a table saw or disk sander. As for me, it was just sand or file and test fit over and over again. Notice that a series of pin holes on the vertical fuselage core mark where the top of these sheets should be aligned.
-
Getting the angles right on the top sheeting requires a lot of sanding.
-
I used a Great Planes Power Plane for a lot of the rough shaping.
-
I confess to smoothing things out with spackle!
-
Quite a bit of cutting and fitting is involved in getting the tail of the fuselage fitted. Popsicle sticks are handy tools!
The underside sheeting needs to be curved by lightly scoring it with parallel lines and then formed with the assistance of gentle application of heat at a low temperature.
-
The keel is glued on the underside, aligned with triangles cut from scrap foam sheet.
-
The aft fuselage bottom is scored to facilitate curving it.
-
After scoring and gently using a little heat from a hot air gun, the bottom sheet is curved and then allowed to set.
-
The scored and curved sheet forms the bottom of the aft fuselage.
The forward part of the fuselage is a fairly simple matter of laminating, gluing, and shaping.
-
The fuselage front is glued up from several sheet foam parts.
-
The fuselage front is glued directly to the wing/aft fuselage assembly.
-
The air intakes are glued up from pink foam parts and then shaped.
-
The nose is glued up from three layers of precut pink foam and attached to the fuselage front.
-
The nose in the process of being shaped. The intakes are ready for some final shaping.
-
Magnets keep the hatch/cockpit in place.
Radio Installation
The two servos are cut into the lower aft fuselage sides. The location doesn’t seem to be critical.
Notice how the aft underside of the elevons is tapered (as indicated in the instructions). This very much affects how the plane will fly.
Where to put the electronics is up to the builder. I cut a hatch, retained by a tiny but powerful magnet, into the upper surface of the aft fuselage and slipped the receiver and ESC into it. The ESC to battery wire is extended into the foremost nose compartment.
The motor can be installed to a stick mount. Alternatively, I made a simple cross shaped radial mount out of plywood and used sharp bamboo skewers to make sure it was solidly attached to the sheet Depron at the rear of the fuselage.
-
The elevon servos are mounted to the aft underside of the fuselage.
-
The equipment hatch open. The receiver and ESC reside within.
-
The equipment hatch. The little rectangle at the left is a tiny strong magnet from an electric toothbrush.
-
The motor mount is secured with bamboo skewers.

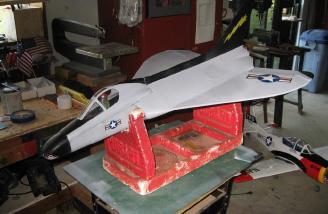

Completion
I used an initial coat of water based polyurethane, after which the foam is sealed sufficiently to withstand any paint you might choose. I used inexpensive spray can paint from the hardware store. Look on 6mm's site for downloadable decals.
Control throws, expo settings, CG location and tips on painting are all included in the instructions. The bay in the front of the nose (which I forgot to photograph) will hold 3x2100 LiPos. With them in front and the electronics inside the aft fuselage, the plane balanced without additional weights.
Flying
Basics
I liked the looks of my friend Jon's Skyray and loved to see it racing through the sky. That's why I got one for myself, and that's what I love about it. In spite of its skydart-like looks, the Skyray is stable and responsive.
Taking Off and Landing
The Skyray needs to be hand launched. In the video, my friend Glen grasps it by the wingtips and gives it an upward toss, but once the plane is trimmed you won't need an assistant. I just grasp it by the vertical fuselage element just above the CG point, point it slightly upward, rev up the motor and let it pull away from my hand.
The original Skyray was designed for the task of landing on the deck of an aircraft carrier. Likewise, the model Skyray can approach very slowly in a nose up attitude and can be set down at hardly more than walking speed. Since I fly over soft and well tended grass, I bring mine in fast and shallow, bellysliding over the grass. When touching down, especially if you are doing it my way, try to have the elevons in a neutral position. If they are deflected, you risk tearing off the downward projecting tip of the elevon that is deflected upward. (Sounds confusing, I know, but take a look at the elevons in the construction pictures and you'll see what I mean.)
Aerobatics/Special Flight Performance
What was the Skyray designed to do? Blast off from a carrier, climb very fast, and chase bombers and that's just what this one likes to do. It will climb vertically as far as you want to go, and it will chase across the field at an impressive speed. It can roll like crazy and is at ease inverted. It will do just about anything you might expect from a powerful interceptor with the exception of actions that require an operational rudder. I suppose you could add one, but I don't really see the need. In short, the Skyray handles well, is not vulnerable to stalling and is loads of fun.
Is This For a Beginner?
No way. This is for a builder with some experience and is for pilots who are at home with fast and agile aileron (and/or elevon) aircraft.
Flight Video/Photo Gallery
-
Waiting for the green light at the field.
-
Heading for the launch point
-
Doing what it does best - climbing to intercept bombers.
-
It looks real for sure!
-
Showing a lean profile.
-
Showing the colors on a flyby
-
Houston, we have company up here!
-
Descending to approach altitude
Downloads
Conclusion
If you have some building and flying experience, you are going to like this Skyray. This one is for screaming across the field followed by a victory roll or two or three. It looks great in the air, and it looks harder to fly than it is. I like both the kit and the finished airplane and can find nothing to criticize. I thought it well worth the time spent building it.
Two final hints
1) For at least the initial flights, pick a large flying field. This baby can cover a lot of ground. Once you get used to it, you will be able to keep it within a "park sized" space. 2) Before you build, why don't you make a tracing of all the parts in case you need to make replacements. There is lots of extra foam in the kit.
Pluses:
- Looks great, flies great. Fun!
- User friendly instructions
- When you finish a kit like this, you feel like you have accomplished something
Minuses:
- None noted
