Great Planes Performance Series Giant Scale Cap 3D ARF Review w/ OS 160
Steve Herlacher has a great time exploring this exciting new 1.60 sized 3D aerobat and the OS 160FX powerhouse to go with it!
Introduction
|
|
| Wingspan: | 79" |
| Wing Area: | 1168sq in |
| Weight: | 12.5 - 14lb |
| Length: | 77" |
| Servos: | Futaba and Hitec |
| Transmitter: | Futaba 14MZ |
| Receiver: | Futaba R148DF |
| Motor: | OS 1.60FX |
| Manufacturer: | Great Planes |
| Available From: | Tower Hobbies |
Several years ago, Great Planes came out with several surprisingly capable aerobatic aircraft, both in kit and ARF form, such as the very popular .40 sized Cap 232 and the .46 sized Giles G202. When it came to 40 then 60 sized aerobatic birds, Great Planes was THE name. Then they added the 1/3 scale Extra kit, and later the Matt Chapman 1/3 scale ARF -- two more awesome aerobats. Realizing there's a HUGE transitional space between the 40s and the 1/3 scale, they added an 'inbetween' line-up...such incredibly popular birds as the Patty Wagstaff Extra 1.60. The Cap 3D is one of Great Planes new lineup of 160-sized performance series airplanes even more focused on lightweight and 3D performance...as much as 2 lbs lighter than the Patty Extra! They also have an Ultimate Biplane and a Yak 54 which both look great.
Kit Contents
The Cap 3d kit includes:
- Pre-built and covered wings,fuselage and tail assemblies
- pushrods
- Fiberglass main landing gear
- spring loaded tailwheel assembly
- 3" main wheels
- 1" tailwheel
- nylon adjustable engine mount
- 24oz fuel tank
- wood servo trays and wing joiners
- hardware package
- decal sheet
- 3.5" diameter aluminum spinner
- photo-illustrated instructions.
Items needed to complete the kit
- 1.60 sized Engine with pitts style muffler
- 4 channel minimum radio
- 6-7 servos with at least 70oz of torque
- Servo extensions
- Epoxy and thin/think CA
- Misc. Items: Glow plug, 1/4" foam rubber padding, medium fuel tubing,fuel filter, propeller, building and field equipment.
Assembly
The instructions manual was one of the best I have seen, it even gives lots of hints and tips on how to do things, like using a covering iron to cut the covering instead of a knife.
I first went over everything with a covering iron to get the wrinkles out of the Monokote, there was not an excessive amount but still some nonetheless.
-
The first step was to hinge the ailerons using plastic hinge points. The holes were already drilled and there was nothing to it other than to glue them in. I like to use Pacer hinge glue as it is easy to clean up with water. I also add a few drops of oil
-
The heavy duty plastic horns were included in the kit and just screw to the hard points in the aileron after applying thin CA to harden the holes.
-
I made the 4-40 pushrod after installing the ailerons servos with the output shaft away from the surface. I cut the rods to length and soldered a clevis to the end of it. I used some Futaba S9250 servos I had with a 12" extension on each side.
-
I then joined the wing with the included joiner and 30 minute epoxy. The front locating dowels were also glued in after the wing was dry. That is all there is to the wing.
-
I had to glue the tail in place and hinge the elevators and rudder, the same as the ailerons.
-
The tailwheel assembly was simple and worked great.
-
The landing gear was very easy to assemble and the swept back painted fiberglass looked great! All of the holes in the wheelpants were pre-drilled. I simply bolted on the axles, slid some wheels on, cut the axle to length and bolted on the wheelpant, then
-
The elevator servos were installed with the included 4-40 pushrods but I decided to use a ball link on the servo end since I had some nice aluminum servo arms. The included clevis is fine though if you use plastic arms.
Rudder Servo(s) Choices and Pull-Pull Setup
The manual shows a dual RUDDER servo setup, using two 70+oz servos. That seemed an unnecessarily complicated setup for a rudder this size -- one heavy duty servo would work fine. I used a Hitec HS-5945 digital high torque servo for the rudder and it worked great, plus was alot easier to setup. If you don't have a servo with this much torque, the ganged servo setup will work fine, it will just be a little more work.
I did run into a problem with the pull pull wires. I found that they were slightly rubbing on the top of my elevator servos. If the pull pull exits on the rear of the fuse would have been 1/4" or so higher they wouldn't have touched. Putting the ball links on the bottom of the control horn helped a little but not enough.
To fix this I ran the wires thru a short piece of nylon tubing that was glued in the rear of the fuse above the servo.
-
Rudder servo setup: I chose one high torque digital rather than the ganged pair of 70 in oz servos recommended.
Since I used a lighter glow engine, the manual says to mount the servo forward in the fuse and use a pull pull setup.
Ag -
If you look hard you can see the nylon tube above the servo.
-
Don't forget to cut the rudder horns down so the elevators don't hit them.
-
The elevator comes very close but doesn't touch.

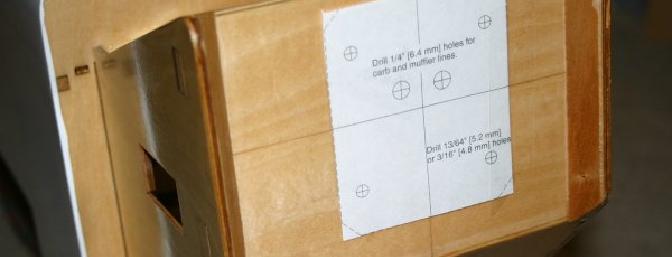

Engine mounting -- Great Planes couldn't have made this any easier!
Engine Spacing Suggestion
This small, light engine is mounted at the end of the mount and this allows the engine to have alot of flexibility which can cause the mount to break. I removed my cowl 2 times at the flying field because I thought the engine bolts came loose as I could grab the spinner and wiggle it around. I would recommend mounting the engine farther back in the mount and spacing the mount itself away from the firewall to get the recommended hub/firewall distance.
This couldn't be any simpler, without them including and installing the engine for me!
-
3. I installed the Throttle servo and linkage. The pushrod needed a slight bend.
-
4. I mounted the cowl mounting blocks, glued to the firewall.
-
5. I've got the fuel tank installed.
-
Look at this great looking included spinner! It didn't need any cutting, they even included the bolt and adapter for the OS 1.60FX!
-
The fuselage even had pre-installed ply mounts for the switch and charge jack.
-
Charge jack -- I had to mount it opposite the switch, as they wouldn't both fit on one side.
-
The included cockpit decal sticker was put on, then the canopy (which was cut and painted already!) with 4 screws.
-
I painted the cockpit area black -- it looked alot better than balsa colored.I was disappointed that I could not find the pilot offered for sale anywhere that is shown on the box and on Towers site. The kit does not include a pilot.
Completion
The recommended CG is 5 3/4" back from the leading edge of the wing and can be moved 3/4" back or forward from this. My Cap came out a little tail heavy and I had to add 2 ounces of lead to the nose, to put it towards the rear of the CG limit.
exactly the low end of the specs! That doesn't happen very often.
I setup the control throws per the manual:
Low rates
- Ailerons 1" up and down
- Elevator 1 1/2" Up and down
- Rudder 3" right and left
High rates
- Ailerons 1 1/2" up and down
- Elevator 2 1/2" up and down
- Rudder 4 1/2" left and right
Flying
I ran a tank of fuel thru the OS 1.60 engine on the ground to start the break in process. After that the Cap was ready to test fly.
After installing the wing with 2 nylon bolts, I filled up the tank, primed the 1.60, and it fired right up on a single flip of the 18x6 prop. After some adjusting of the low end and a good range check I taxied out to the runway and was cleared for takeoff.
Take-off and Landing
-
The first take-off was ideal, with just a touch of rudder correction, and we were airborne i 50' feet, with no trimming required!
-
Not surprising that she took off so cleanly and had no trim issues, from an ARF of this quality.
-
Coming in for a landing.
-
Landing was effortless, even deadstick (I knew I should've broken the engine in more prior to flying!), without any bad tendencies to drop a wing or snap.
Takeoff was effortless!
The Cap 3D just floats in for landings and is very easy to control. The Cap is a real floater and didn't have any bad tendencies to drop a wing or snap, not to say that it won't if too much elevator is used with not enough airspeed.
Aerobatics
After adjusting the engine some more it was time to have some fun with the cap. I tried some basic aerobatics, which it performed with no problem -- loops, rolls, spins, etc. It will harrier with only minimal wing rocking and no mixing of the ailerons. Waterfalls were great and blenders/inverted spins were very flat. This was turning out to be a great 3d plane!
Rolls were very quick on high rates and knife edge had some coupling to the gear, which is caused or at least exaggerated by my rear CG point. Inverted flight needed no down elevator to fly level so the CG felt perfect to me for 3D flight. Other pilots may want to add a little more lead to the nose than I did if you are not comfortable with flying a plane with it set at the rear limits.
| 3D Report Card | ||
Steep takeoff! |
|
|
| Maneuver | Grade | Comments |
| Hovering | A | Plenty of power to hover |
| Upright Spins | A | Spun like a Cap should |
| Torque rolls | A | No problem |
| Knife edge | B | Knife edge had coupling to the gear |
| Elevator | B+ | Only had very minor wing rock which was very controllable |
| Waterfall | A+ | The Cap does a great waterfall |
| Rolling circles | A+ | No problem at all! |
| Rolling harrier | A+ | It does these very easily and will make you look like a pro! |
| Aileron Rolls | A+ | Aileron rolls were very good and a blur on high rates |
| Stall turns | A+ | No problem |
| Wall | A | It does this pretty good, just have to keep on the sticks a little bit to stop it from snapping out. |
| spins | A | Flattened out very nicely |
| Inverted flight | A | It flew inverted with no elevator input |
| Blender | A | The Cap does a very good blender |
| Point rolls | A+ | Very crisp and stopped exactly when the sticks were centered. |
| Snap rolls | A- | Needed alot of speed to execute cleanly. |
Is This For a Beginner?
The Cap 3d is NOT meant for a beginner. It would serve as a 3rd or 4th plane for someone getting into aerobatics or giant scale, but is really geared toward the 3D flyer that knows how to wring it out.
Flight Video/Photo Gallery
Downloads
Conclusion
The Cap 232 3D is a great addition to the performance series of aircraft Great Planes is now offering. It flies better than any other Cap I have flown and it looks great. The covering scheme is very easy to tell top from bottom and after sitting in the sun doesn't have wrinkles in it. The hardware offered is top notch and it goes together very easily. It will be a great addition to your hangar whether you are a hardcore 3D'er or a Sunday flyer.
