Old Jul 15, 2012, 09:06 AM
Registered User
Joined Apr 2011
176 Posts
Discussion
[ The first GPS/INS OSD] Skylark Dianmu OSD with RTH

Skylark Dianmu OSD with RTH
The new generation of OSD with GPS/INS
Easy / Simple / Professional
http://www.skylarkfpv.com/store/inde...&product_id=87




Dianmu connection diagram

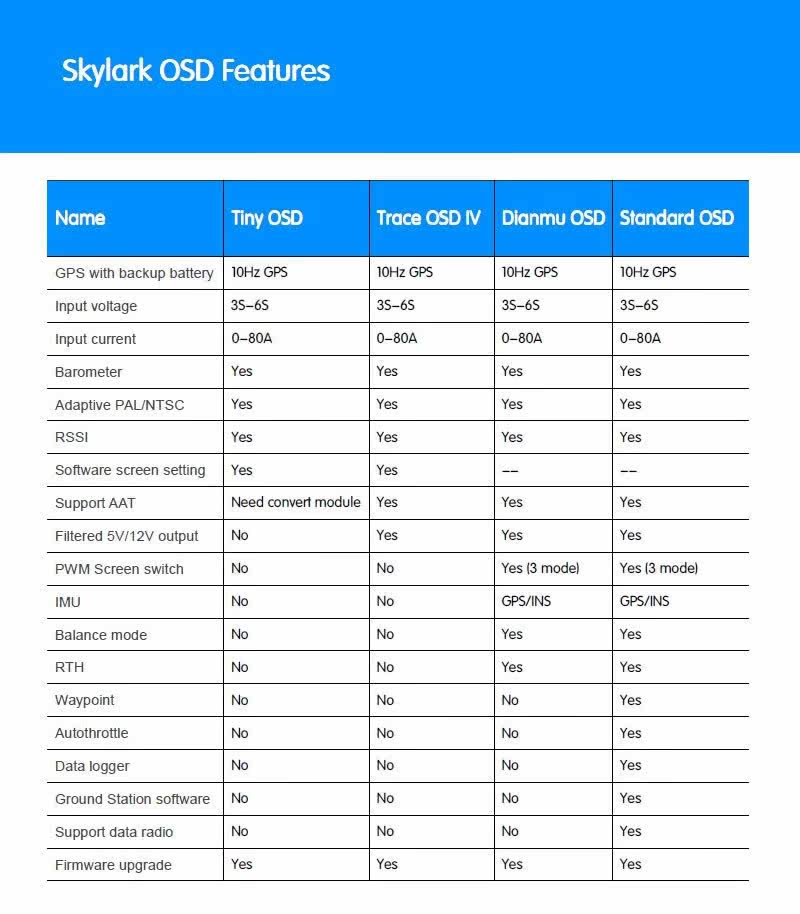

Skylark OSD Features


Skylark FPV http://www.skylarkfpv.com



About GPS/INS
[From Wikipedia] http://en.wikipedia.org/wiki/GPS/INS
GPS/INS refers to the use of GPS satellite signals to correct or calibrate a solution from an Inertial Navigation System (INS).
skylarkfpv is offline Find More Posts by skylarkfpv
Last edited by skylarkfpv; Jul 15, 2012 at 09:27 AM.
Reply With Quote
Sign up now
to remove ads between posts
Old Jul 15, 2012, 10:33 AM
Project Tormentor is flying!
United States, WA, White Salmon
Joined Nov 2005
2,018 Posts
Interesting. Did you create your own Kalman filter for this system?
philthyy is offline Find More Posts by philthyy
Reply With Quote
Old Jul 15, 2012, 01:02 PM
RTFM
octane81's Avatar
Antarctica
Joined Oct 2010
1,171 Posts
Cool , show us a demo video!
octane81 is online now Find More Posts by octane81
Reply With Quote
Old Jul 22, 2012, 07:06 PM
Nakelp
nakelp86's Avatar
United States, NJ, Union
Joined Sep 2004
6,793 Posts
+1
and screen modes :-))
nakelp86 is offline Find More Posts by nakelp86
Reply With Quote
Old Jul 23, 2012, 09:12 AM
Registered User
Joined Apr 2012
937 Posts
Gief me info!
timtimtim is offline Find More Posts by timtimtim
Reply With Quote
Old Jul 24, 2012, 12:42 PM
Registered User
Castel101's Avatar
United States, OR, Portland
Joined Sep 2011
699 Posts
Looks good, would like to see actual video and/or screenshots of the video feed.
Castel101 is offline Find More Posts by Castel101
Reply With Quote
Old Jul 25, 2012, 01:00 AM
Registered User
Dornbirn / Austria
Joined Mar 2008
639 Posts
nice

what's the weight of those OSDs? (tiny, dianmu, trace, standard?)
I don't see it anywhere
solars is online now Find More Posts by solars
Last edited by solars; Jul 25, 2012 at 01:16 AM.
Reply With Quote
Old Jul 26, 2012, 07:31 PM
Registered User
Joined Apr 2011
176 Posts
Weight:
Tiny OSD: 25g
Trace OSD: 30g
Dianmu OSD: 50g
Standard OSD: 60g
skylarkfpv is offline Find More Posts by skylarkfpv
Reply With Quote
Old Jul 26, 2012, 09:07 PM
My Karma ran over my Dogma
fireslayer26's Avatar
United States, FL, Jacksonville
Joined Feb 2010
950 Posts
Need screenshots, video.........
fireslayer26 is offline Find More Posts by fireslayer26
Reply With Quote
Old Jul 27, 2012, 03:03 AM
Registered User
Dornbirn / Austria
Joined Mar 2008
639 Posts
Quote:
Originally Posted by skylarkfpv View Post
Weight:
Tiny OSD: 25g
Trace OSD: 30g
Dianmu OSD: 50g
Standard OSD: 60g
cool, thanks a lot!
solars is online now Find More Posts by solars
Reply With Quote
Old Jul 27, 2012, 06:36 AM
DragonLINK UHF only!!!!
Joined Feb 2011
1,217 Posts
Screen Shots x3 :-)
LexusFPV is offline Find More Posts by LexusFPV
Reply With Quote
Old Aug 03, 2012, 05:53 PM
FPV FTW
h0tr0d's Avatar
United States, TX, Brenham
Joined Jul 2011
229 Posts
Here's a quick video of my maiden with the Dianmu. Shows the screen modes. I'm testing stabilization and rth at the moment and getting that and the plane dialed in. More videos to come. Note that I'm using a 4s power system and using the built in 12v power supply to power my pz0420 and rmrc 800mW vtx on 1258Mhz with no noticeable noise.

I have it set to the big fonts because I'm out of contact lenses and still using my goggles.

Conditions were 10-15mph winds and gusting...stabilization had it's work cut out today.

Skylark Dianmu OSD Maiden in SkyWalker (4 min 43 sec)
h0tr0d is offline Find More Posts by h0tr0d
Reply With Quote
Old Aug 03, 2012, 07:55 PM
Nakelp
nakelp86's Avatar
United States, NJ, Union
Joined Sep 2004
6,793 Posts
so the text can be smaller?
nakelp86 is offline Find More Posts by nakelp86
Reply With Quote
Old Aug 03, 2012, 08:25 PM
Project Tormentor is flying!
United States, WA, White Salmon
Joined Nov 2005
2,018 Posts
Hotrod, how do you like it so far? Is it a setting thing, or is it me but the colors seem a little washed out...?
philthyy is offline Find More Posts by philthyy
Reply With Quote
Old Aug 03, 2012, 08:27 PM
Project Tormentor is flying!
United States, WA, White Salmon
Joined Nov 2005
2,018 Posts
Hmm...answered my own question, kinda. The colors are a function of the camera you're using, not the OSD. I was confused and was thinking this was the Skylark OSD,Vtc, Camera all-in-one unit.
philthyy is offline Find More Posts by philthyy
Reply With Quote
