Our QuadH

You have also build an H-Quad ?
A topic to make a list and help those who would like to make one.

Add yours with a description / photos / video or a link to your topic.


I start with my first rc build from scratch.

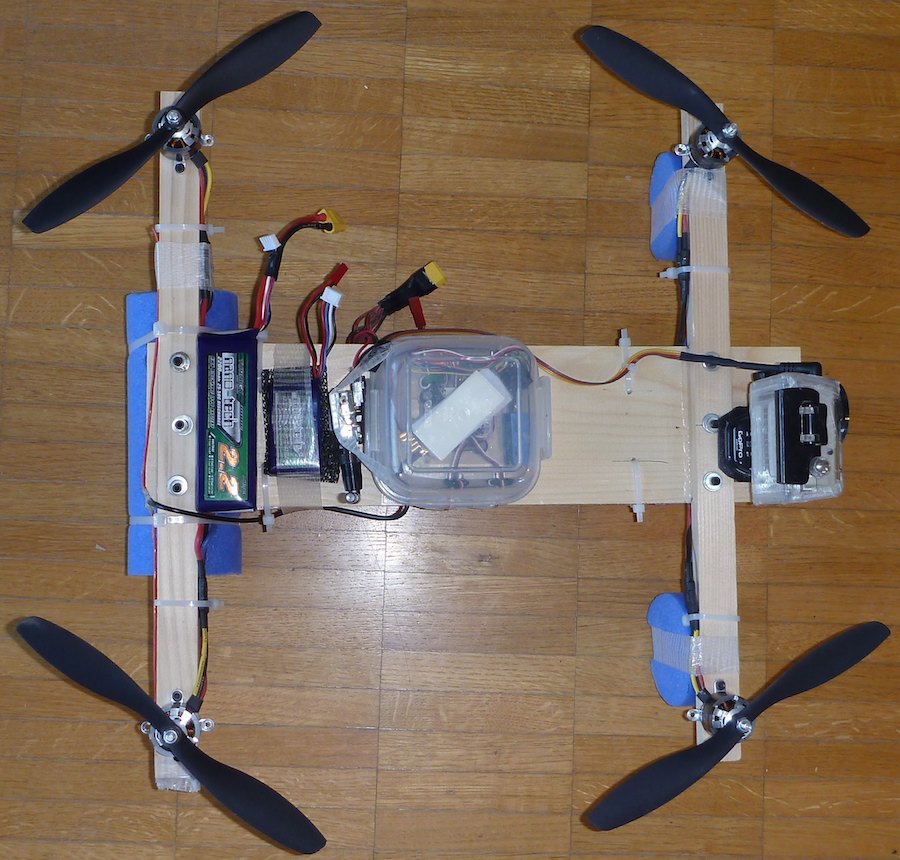

A central plate of wood 40 cm x 10 cm x 1 cm.
Two arms 40cm x 2.5 cm x 1.5 cm
47 cm between the motors (diagonal)
=260g

openpilot CC3D
NTM 28-26A 1200kv & Series Accessory Pack
ESC 30A Flashed with SimonK FW from opstore.eu
8"x4.5 Carbon reinforced AP Propeller from flyduino.net
Gopro HD2 - Turnigy 9x - DragonLink
2200mAh 3S 25C Lipo (nano-tech or zippy compact)

AUW: 1300g
Autonomy: about 7 minutes.

QuadH FPV Trees (3 min 35 sec)




eyesonsky is offline Find More Posts by eyesonsky
Last edited by eyesonsky; Oct 18, 2012 at 01:39 AM.
Reply With Quote
Sign up now
to remove ads between posts
Old Sep 07, 2012, 10:58 AM
Registered User
Mortimer's Avatar
Joined Apr 2010
1,385 Posts
Nice Hquad, nice video.
How did you manage to get a CC 3D board ?
There is no price nor availability date shown on the site: http://www.opstore.eu/openpilot/1-coptercontrol.html
Mortimer is online now Find More Posts by Mortimer
RCG Plus Member
Latest blog entry: 5V Power Supply
Reply With Quote
Old Sep 08, 2012, 06:02 PM
The simplest, the better!
pdemon's Avatar
Italy, Europe
Joined Apr 2002
1,056 Posts
Hi
Here is my H-quad, it is foldable for easy travelling
More info here: http://www.dronecam.net/frames.html#...e1347144962798
pdemon is offline Find More Posts by pdemon
Reply With Quote
Old Sep 09, 2012, 08:25 AM
The simplest, the better!
pdemon's Avatar
Italy, Europe
Joined Apr 2002
1,056 Posts
Ah, a little clip...
F-A-Q! (2 min 8 sec)
pdemon is offline Find More Posts by pdemon
Reply With Quote
Old Sep 09, 2012, 03:23 PM
Registered User
combatxe2's Avatar
buckinghamshire
Joined Oct 2004
189 Posts
Quote:
Originally Posted by pdemon View Post
Hi
Here is my H-quad, it is foldable for easy travelling
More info here: http://www.dronecam.net/frames.html#...e1347144962798
really like the idea of this frame, would suit me perfectly as my main transport is a motorcycle and ive been looking for a good folding frame for a while now.
Will you be selling these frames?
if so what sort of cost are we talking?
Cheers

Mark
combatxe2 is offline Find More Posts by combatxe2
Reply With Quote
Old Sep 11, 2012, 01:13 AM
The simplest, the better!
pdemon's Avatar
Italy, Europe
Joined Apr 2002
1,056 Posts
Hi Mark
PM sent!
Have a nice day...
Pierluigi
pdemon is offline Find More Posts by pdemon
Reply With Quote
Old Sep 11, 2012, 07:02 PM
FPV it is!
Canada, SK
Joined Aug 2012
1,264 Posts
You inspired me! Look what I did at work today. Made from clear Cedar
Titus Gordon is offline Find More Posts by Titus Gordon
Reply With Quote
Old Sep 11, 2012, 07:07 PM
Registered User
Joined Aug 2012
100 Posts
Good work Titus, simple frames are the best ones!
AeroRoo is offline Find More Posts by AeroRoo
Reply With Quote
Old Sep 11, 2012, 07:37 PM
FPV it is!
Canada, SK
Joined Aug 2012
1,264 Posts
@ AeroRoo, thanks! I'm trying to keep this as simple as possible to start since this is my first quad.

Also since I work at a Cedar warehouse it made sense to use Cedar
Titus Gordon is offline Find More Posts by Titus Gordon
Reply With Quote
Old Sep 12, 2012, 01:18 AM
Registered User
eyesonsky's Avatar
Switzerland
Joined Jul 2010
346 Posts
Quote:
Originally Posted by Mortimer View Post
Nice Hquad, nice video.
How did you manage to get a CC 3D board ?
There is no price nor availability date shown on the site: http://www.opstore.eu/openpilot/1-coptercontrol.html
I have it from http://forums.openpilot.org/topic/12...-for-diamonds/

Quote:
Originally Posted by pdemon View Post
Hi
Here is my H-quad, it is foldable for easy travelling
More info here: http://www.dronecam.net/frames.html#...e1347144962798
Nice one dude, well done

Quote:
Originally Posted by Titus Gordon View Post
You inspired me! Look what I did at work today. Made from clear Cedar
Cool, one more

Quote:
Originally Posted by AeroRoo View Post
Good work Titus, simple frames are the best ones!
+1
I wonder why no store offers this kind of frame.
Ha yes there is one soon
http://www.hauntnet.com/frankenquad/...products_id=50

But hey it is so simple and cheap to do
eyesonsky is offline Find More Posts by eyesonsky
Reply With Quote
Old Sep 14, 2012, 08:01 AM
Registered User
Indonesia, Jakarta Capital Region
Joined Mar 2007
78 Posts
My Friend built one out of PVC Tubes
redblur is offline Find More Posts by redblur
Reply With Quote
Old Sep 14, 2012, 04:52 PM
Registered User
Mortimer's Avatar
Joined Apr 2010
1,385 Posts
Quote:
Originally Posted by eyesonsky View Post
I understand. As for previous version, reserved for elite, not available to common mortals. No problem.
Mortimer is online now Find More Posts by Mortimer
RCG Plus Member
Latest blog entry: 5V Power Supply
Reply With Quote
Old Sep 14, 2012, 05:09 PM
Registered User
eyesonsky's Avatar
Switzerland
Joined Jul 2010
346 Posts
Quote:
Originally Posted by Mortimer View Post
I understand. As for previous version, reserved for elite, not available to common mortals. No problem.
haha not for "elite" just some guys have helped in the project
eyesonsky is offline Find More Posts by eyesonsky
Reply With Quote
Old Sep 30, 2012, 02:41 AM
The simplest, the better!
pdemon's Avatar
Italy, Europe
Joined Apr 2002
1,056 Posts
Hi!
related to the H-quad concept, I developed a simple GoPro tilt only gimbal to be mounted in these copters... and good for any frame like Flamewheel and TBS, I suppose.
This second prototipe is still warm from the CNCing , is made from expanded PVC and is very easy to assemble only with cyano, that works extremely well with this material with a great welding effect.
pdemon is offline Find More Posts by pdemon
